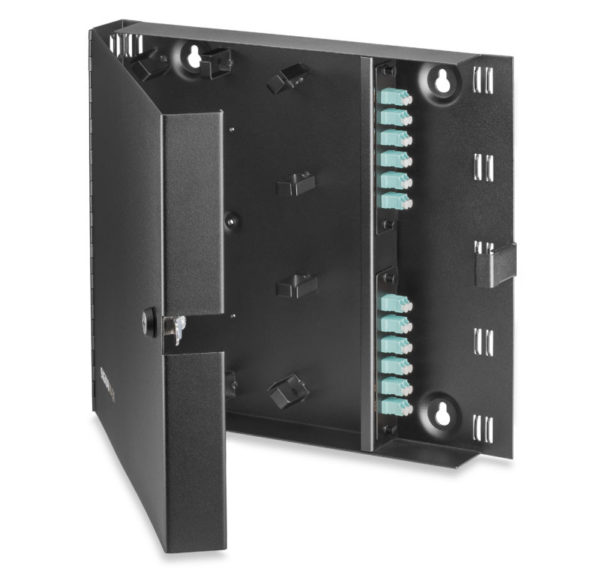

Signamax WFE2MS-B 12 to 24 Fiber Wall-Mount Optical Fiber Enclosure with Cam Lock

Description

Signamax WFE2MS-B 12 to 24 Fiber Wall-Mount Optical Fiber Enclosure with Cam Lock

The Signamax Wall-Mount Enclosures were designed for storage, protection, and termination of optical fiber cables. Ideal in small installations or where rack and cabinet mounting is not feasible, they are most popularly applied for demarcation and consolidation points, horizontal mini cross-connects, centralized transition points, etc. The enclosures termination density ranges between 6 and 96 fiber connections depending on the enclosure capacity (2 or 4 adapter plates) and optical fiber connectors used.

Modular design of Signamax optical fiber adapter plates allows creating flexible connection patterns which can be arranged in 2 or 4 adapter groups in any available connector combination. All enclosures feature front access hinged doors with two versions equipped with additional lockable security doors. Internal cable anchor points and fiber slack management mechanisms ensure reliable cable fixing, safe cable/fiber tension and bend radii.

• Integrated for 2 or 4 modular adapter plates for a variety of connections
• Hinged front door with locking option
• Top and bottom cable entry points
• Fiber management brackets to ensure safe tension and bend radius
• Splice tray space accommodates 2 to 4 trays on the attached mounting nuts
• Screw holes on the rear panel offers a surface mountable option
• Durable 16-gauge steel case with high-impact, corrosive resistant black finish

• CONSTRUCTION

16-gauge steel with corrosive resistant black finish

• CAPACITY

WFE2M(S)-B: 2 plates & trays, up to 48 fibers
WFE4M(S)-B: 4 plates & trays, up to 96 fibers

• MOUNTING DIMENSIONS

WFE2M(S)-B: 2.0” D x 14.0” W x 12.2” H (50 mm x 352 mm x 310 mm)
WFE4M(S)-B: 4.0” D x 14.0” W x 12.2” H (100 mm x 352 mm x 310 mm)

• WEIGHT

WFE2M(S)-B: 2.54 LB (1.15 kg)
WFE4M(S)-B: 5.51 LB (2.50 kg)

• ENVIRONMENTAL CONDITIONS

Operating Temperature: 14 °F to 140 °F (-10 °C to 60 °C)
Storage Temperature: -40 °F to 158 °F (-40 °C to 70 °C)
Operating RH: 93% Max (non-condensing)

• WARRANTY

 5-year Limited Component
10-year Signamax Base Trunk
15-year Signamax Extended Component
25-year Signamax Cabling System
