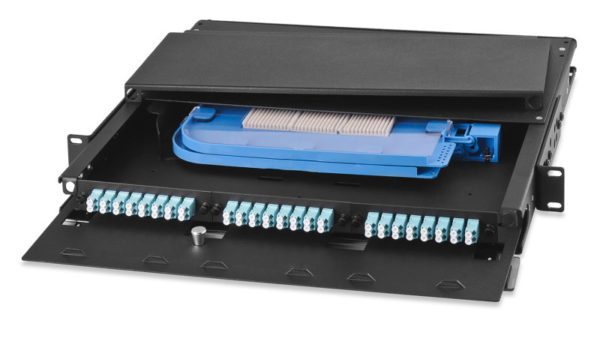

Signamax UFE3HD1-B 18- to 72-Fiber Enclosure with Locking Slide-Out Support Stage Accepts 3 Adapter Plates

Description

Signamax UFE3HD1-B 18- to 72-Fiber Enclosure with Locking Slide-Out Support Stage Accepts 3 Adapter Plates

• Proudly manufactured in the U.S.A.
• Meets EIA/ECA-310-E mounting standards for 19 & 23 inches
• Additional 2 inches of depth than the HD2-Series enclosures
• Transparent plastic front & solid rear panel are hinged for easy access
• Sliding tray with built-in latch-lock for effortless installation
• Interchangeable LGX footprint modular adapter plates for custom combinations

• CONSTRUCTION

Housing: Steel with corrosive resistant black finish
Front Cover: High-impact thermoplastic, UL94V-0 fire retardant
Grommets: Rubber

• DIMENSIONS

UFE3HD1-B: 16″ D x 19″ W x 1.75″ H (406.4 mm x 482.6 mm x 44.45 mm)
UFE6HD1-B: 16″ D x 19″ W x 3.5″ H (355.6 mm x 482.6 mm x 88.9 mm)
UFE9HD1-B: 16″ D x 19″ W x 5.25″ H (406.4 mm x 482.6 mm x 133.35 mm)
UFE12HD1-B: 16″ D x 19″ W x 7″ H (406.4 mm x 482.6 mm x 177.8 mm)

• CAPACITY

UFE3HD1-B: Adapter Plates/Cassettes: 3 Max; Splice Trays: 2 Max
UFE6HD1-B: Adapter Plates/Cassettes: 6 Max; Splice Trays: 4 Max
UFE9HD1-B: Adapter Plates/Cassettes: 9 Max; Splice Trays: 6 Max
UFE12HD1-B: Adapter Plates/Cassettes: 12 Max; Splice Trays: 8 Max

• WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
