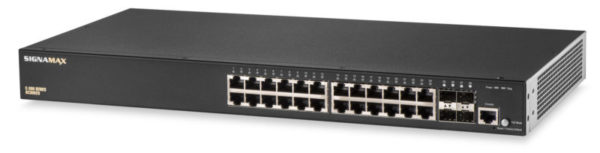

Signamax # SC30020 C-300 24 Port Gigabit PoE+ Full Power Managed Switch

Description

Signamax # SC30020 C-300 24 Port Gigabit PoE+ Full Power Managed Switch

• Simplified management with intuitive dashboard
• Supports PoE+ on all ports
• Delivers 370W PoE and can be extended up to 740W
• 4 uplink SFP interfaces
• Static IP routing and RIP
• 8 dedicated QoS queues
• Integrated mounting brackets for rack installation



• PORTS

RJ-45 (Downlink): 24 10/100/1000
SFP Uplink Ports: 4
PoE Ports: 24

• PoE

PoE Budget: 370W (740W with AP50010)
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation
PoE Scheduling

• PERFORMANCE

Switching Capacity: 56Gbps
Forward Rate: 41.7Mpps
MAC Address Table: Up to 8K
256MB DRAM
Up to 12Mb Packet Buffer
32MB Flash memory
Supports 10K Jumbo Frames
Wirespeed forwarding
IPv4/IPv6 Dual Protocol Stack

• SECURITY

DDOS Protection
CPU Guard (CPU Protection)
Port Isolation
Storm Control
Broadcast/Multicast/Unknown Storm Control
Up to 512 Access Control Lists (ACL) based on L2/L3/L4
Port Security
MAC Authentication
Dynamic ARP Inspection
AAA (IEEE 802.1X RADIUS/TACACS+)
IP Source Guard
Web Authentication
DHCP Snooping
Encrypt switch access with SSH and SSL

• LAYER 3 STANDARDS

Up to 56 Static routes
RIPv1/RIPv2(apart from SC30010)
DHCP v4/v6 Client / DHCP Relay
Static Multicast Routing

• LAYER 2 STANDARDS

SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
Spanning Tree:
IEEE 802.1D Spanning Tree Protocol (STP),
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)
Loopback Detection
BPDU Filter/Guard
BPDU Forward
Root Guard
Up to 4094 IEEE 802.1Q (802.3ac) Vlans:
Port-Based/MAC-Based/Protocol-Based(IEEE 802.1v)
Guest VLAN
Auto Voice VLAN
Dynamic VLAN Assignment
802.3ad Link Aggregation (static and LACP)
Multicast:
IGMP v1/v2/v3 snooping
IGMP Filtering/Throttling:
IGMP Queries
IGMP Immediate leave
MLD Snooping
mDNS
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3az Energy Efficient Ethernet
Q-in-Q

• MANAGEMENT

Web-based Graphical User Interface (GUI)
Industry-standard CLI (Telnet/SSH) with context-sensitive help
Console management port on the front panel for ease of access
Switch Cluster allows up to 36 switches to be managed from a single switch
Comprehensive SNMP MIB support for standards based device management
Dual Image/Configuration
RMON (groups 1,2,3 and 9)
NTP/SNTP
Auto Firmware Upgrade
SNMP v1/v2/v3

• QoS

Rate Limiting (Ingress/Egress Port-Based)
Priority Queues Schedule (WRR/Strict Priority/Hybrid QoS)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VOIP
8 HW Queues per port for 802.1p priority tagging
Policy based dynamic QoS

• DIAGNOSTIC TOOLS

Diag LED
Cable Test
Digital Diagnostic Monitoring (DDM) on SFP Ports
Ping polling for IPv4 and IPv6
TraceRoute for IPv4 and IPv6
Port Mirror (One to One, One to Many)
Remote Mirror
Event/Error Log/Syslog/SMTP Alerts
SFlow
Trace on port -Ingress only

• ELECTRICAL CHARACTERISTICS

Max Power Consumption: 490W
Acoustic Noise: 49.7 dB (A)
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 370K hrs

• PHYSICAL CHARACTERISTICS

Dimensions: 17.3” W x 8.6” D x 1.7” H (44 cm x 22 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 6.85 lb (3.1 kg)

• ENVIRONMENTAL REQUIREMENTS

Heat Dissipation: 1679 (Btu/H)
Operating Temperature: 32 to 113°F (0 to 45°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity: 10 to 90% (non-condensing)

• CERTIFICATIONS

Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class A
Immunity: IEC 61000-3-3, 61000-4-2/3/4/5/6/11

• WARRANTY

Five years (Including power supply)
