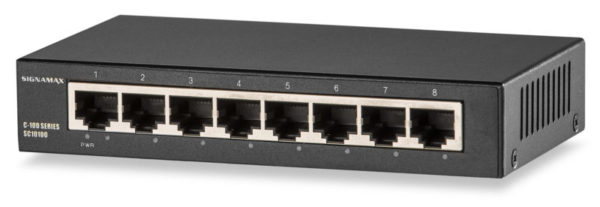

Signamax # SC10100 C-100 8 Port Gigabit Switch

Description

Signamax # SC10100 C-100 8 Port Gigabit Switch

• Zero touch Plug and Play connectivity
• Fanless for silent operation
• Energy Efficient
• Compact size
• Wall mountable rugged metal case with clean black finish

• PORTS

RJ-45 (Downlink): 8 10/100/1000

• PERFORMANCE

Switching Capacity: 16Gbps
Forward Rate: 11.9Mpps
4K MAC Addresses
4Mb Packet Buffer
Supports 10K Jumbo Frames
Wirespeed Forwarding

• LAYER 2 STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3 Auto-Negotiation
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)

• ELECTRICAL CHARACTERISTICS

Max Power Consumption: 4W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 100K hrs

• PHYSICAL CHARACTERISTICS

Dimensions: 5.6” W x 3.1” D x 1.1” H (14.2 cm x 7.9 cm x 2.8 cm)
Weight: 0.59 lb (0.27 kg)
Fanless

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

• CERTIFICATIONS

CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
Safety: CE/LVD EN60950

• WARRANTY

Five years (Including power supply)
