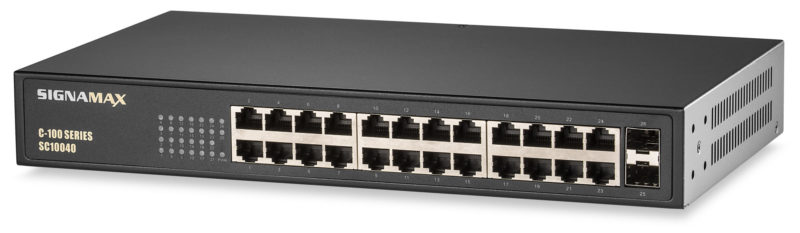

Signamax # SC10040 C-100 24 Port Gigabit Switch

Description

Signamax # SC10040 C-100 24 Port Gigabit Switch

• Zero touch Plug and Play connectivity
• 2 Gigabit SFP uplink interfaces
• Fanless for silent operation
• Energy Efficient
• Internal power supply
• Rugged metal case with clean black finish
• Integrated mounting brackets for rack installation

• PORTS

RJ-45 (Downlink): 24 10/100/1000
Uplink Ports: 2 Gigabit SFP

• PERFORMANCE

Switching Capacity: 52Gbps
Forward Rate: 36.7Mpps
4K MAC Addresses
4Mb Packet Buffer
Supports 10K Jumbo Frames
Wirespeed Forwarding

• LAYER 2 STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3 Auto-Negotiation
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)

• ELECTRICAL CHARACTERISTICS

Max Power Consumption: 12W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 100K hrs

• PHYSICAL CHARACTERISTICS

Dimensions: 12.2” W x 7.0” D x 1.7” H (31 cm x 18 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 3.4 lb (1.5 kg)
Fanless

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

• CERTIFICATIONS

CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
Safety: CE/LVD EN60950

• WARRANTY

Five years (Including power supply)
