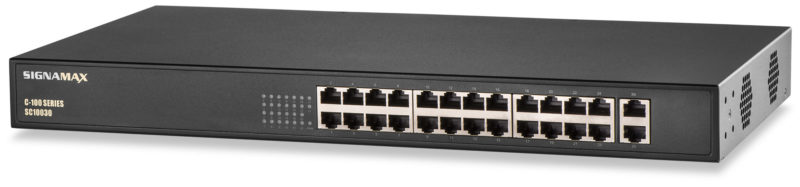

Signamax # SC10030 C-100 24 Port Fast Ethernet PoE+ Lite Switch
Signamax # SC10030 C-100 24 Port Fast Ethernet PoE+ Lite Switch - Image 2

Signamax # SC10030 C-100 24 Port Fast Ethernet PoE+ Lite Switch

$332.94

Category:

Description

Signamax # SC10030 C-100 24 Port Fast Ethernet PoE+ Lite Switch

  • Zero touch Plug and Play connectivity
  • Delivers up to 235W PoE with PoE+ support on all ports
  • 250W internal power supply
  • 2 Gigabit uplink interfaces
  • Rugged metal case with clean black finish
  • Integrated mounting brackets for rack installation
  • PORTS

RJ-45 (Downlink): 24 10/100
Uplink Ports: 2 Gigabit
PoE: 24

  • PoE

Budget: 235W
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation

  • PERFORMANCE

Switching Capacity: 8.8Gbps
Forward Rate: 6.6Mpps
4K MAC Addresses
4Mb Packet Buffer
Supports 10K Jumbo Frames
Wirespeed Forwarding

  • LAYER 2 STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3 Auto-Negotiation
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)

  • ELECTRICAL CHARACTERISTICS

Max Power Consumption: 250W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 100K hrs

  • PHYSICAL CHARACTERISTICS

Dimensions: 17.3” W x 8.8” D x 1.7” H (44 cm x 22.4 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 6.3 lb (2.8 kg)

  • ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

  • CERTIFICATIONS

CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
Safety: CE/LVD EN60950

  • WARRANTY

Five years (Including power supply)
