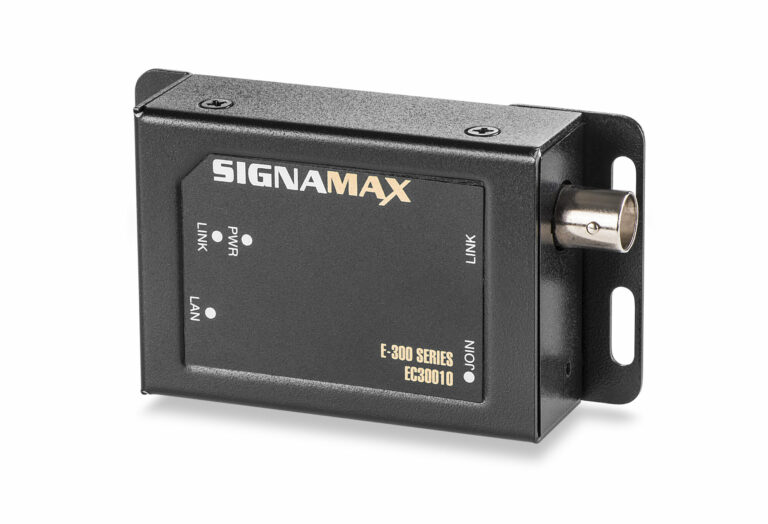

Signamax EC30010 E-300 Ethernet & PoE Over Coax, Local AC Powered

Description

Signamax EC30010 E-300 Ethernet & PoE Over Coax, Local AC Powered

• Reuse existing coax cable
• PoE up to 4,000ft (1200m) over RG6 cables
• Provide up to 57W to the powered device
• Interoperable with indoor and outdoor models
• Zero touch Plug and Play connectivity
• 5 year hardware warranty & support at no additional cost
• Paired with EC30110 or EI30110

• PORTS

RJ45, BNC

• ROLE

Local

• PERFORMANCE

Supports 10K Jumbo Frames
Wirespeed Forwarding

• LAYER 2

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3 Auto-Negotiate
IEEE 802.3x Flow Control
PoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt

• ELECTRICAL CHARACTERISTICS

Powered: AC Adapter (included)
Power Supply:
Output: 56 V DC
Input: 100 to 240 V AC 50/60 Hz
Power Consumption: 2W Max

• PHYSICAL CHARACTERISTICS

Dimensions: 3.36 x 1.85 x 0.91 in (8.54 x 4.71 x 2.3 cm)
Weight: 0.44 lb (0.2 kg)
Housing: IP30
Mounting: Wall mountable (included)

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: -4 to 140°F (-20 to 60°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)

• CERTIFICATIONS

EMC: CE mark, FCC Part 15 Class A; VCCI Class A
Safety: CE/LVD EN60950-1

• WARRANTY

Five years (Including power supply)
