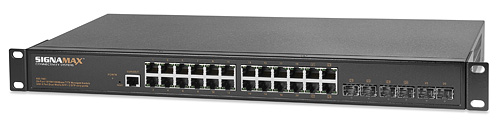

Signamax # 065-7861POE-FP 24-Port 10/100/1000BaseT/TX Managed PoE+ Switch with 4-100/1000Base SFP Dual Media Ports plus 2-100/1000Base SFP only Ports, 370 Watts PoE Power

Description

Signamax # 065-7861POE-FP 24-Port 10/100/1000BaseT/TX Managed PoE+ Switch with 4-100/1000Base SFP Dual Media Ports plus 2-100/1000Base SFP only Ports, 370 Watts PoE Power

he Signamax 24-port Managed Layer 2+ PoE+ Ethernet Switches provide non-blocking performance for 24 10/100/1000BaseT/TX Ethernet connections supporting PoE/PoE+, 4 of which are Dual Media 100/1000Base SFP Ports, plus 2 100/1000Base SFP only ports, for a total of 26 ports. The two SFP only ports and the four Dual Media ports use auto-detected SFP modules for fiber optic switch interconnection at extended distances.

These switches also support modern capabilities such as IPv6 and a full SNMP management package that is complete and comprehensive at a surprisingly low cost. Both ring and star Gigabit backbone network architectures are possible with full automatic failover. The switches can communicate with network management systems such as HP OpenView™ via SNMP for enterprise-wide status display, statistical monitoring, and switch control. The enhanced Layer 2+ look-ahead routing features and IP type of service support make these models excellent choices for establishing or adding to an enterprise PoE / PoE+ network.

• Supports PoE+ (30 watt) Power Source Equipment (PSE)
• Dual speed SFP ports for fast Ethernet or Gigabit Ethernet fiber connectivity
• IEEE 802.3az Energy Efficient Ethernet standard supported
• IPv6 and s-Flow Support
• Easy-Port-Configuration for ease of setup in the IP phone, IP camera, or wireless environments
• IEEE 802.1AB Link Layer Discovery Protocol and Media Endpoint Discovery standard supported
• Supports RSTP/MSTP/STP for Ethernet redundancy
• IP multicast filtering through IGMP snooping V1, V2 & V3
• Supports port-based VLAN and IEEE 802.1Q VLAN Tagging and GVRP
• IEEE 802.1p QoS with four priority queues
• Single IP Management for up to 16 switches
• IEEE 802.3 ad Link Aggregation Control Protocol standard supported
• RS-232 console, Telnet, SNMP v1, v2c & v3, RMON, SSL/SSH, HTTP (web browser), and TFTP Management
• Supports command line interface in RS-232 console
• Secure Shell /Secure Socket Layer and IEEE 802.1x Port-Based Network Access Control with RADIUS supported
• Bandwidth rate control, via port-policer
• Per-port programmable MAC address locking
• Static secure MAC addresses supported
• Port mirroring, both inbound and outbound
• Supports Network Time Protocol (NTP)

• APPLICABLE STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af PoE
IEEE 802.3at PoE+
IEEE 802.3az Energy Efficient Ethernet standard
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol compatible
IEEE 802.1Q Tagged VLAN with GVRP
IEEE 802.3x Flow Control
IEEE 802.1x Access Control
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3ad LACP

• PORTS

24 – RJ-45 10/100/1000BaseT/TX Auto-Negotiation, Auto-MDI/MDIX ports supporting PoE /PoE+, with
4 Dual Media ports supporting 100/1000Base SFP ports, plus
2-100/1000Base ports with SFP only ports
Multicast/Broadcast/Unknown-Unicast Storm suppression enabled.

• LED STATUS INDICATORS

Per Switch: Power
Per Port: Twisted-Pair Port: Status (Link/Activity); Green = 100M, Amber = 100M; PoE Active
SFP Port: Status (Link/Activity/SPD), 100/1000M

• PERFORMANCE

Latency: <4.5 μs (LIFO).
Throughput, per switch: 38.69 Mpps
Switch Fabric Speed: 52.0 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 8K
Frame Buffer: 1,392 KB on-chip frame buffer
Jumbo Frame Support: up to 9 Kbytes frame size
Port Mirroring: Inbound and Outbound, assignable to any port

• NETWORK SECURITY

Secure Socket Layer / Secure Shell (SSL/SSH)
IEEE 802.1x access control with RADIUS authentication Management Access Policy
Control (ACL)

• INTERNETWORKING PROTOCOLS SUPPORTED

Link Layer Discovery Protocol and Media Endpoint Discovery: IEEE 802.1AB
Link Aggregation Control Protocol Trunking: IEEE 802.3ad, 13 trunking groups; up to 16 ports for each group.
GARP VLAN Registration Protocol / Generic Attribute Registration Protocol: IEEE 802.1Q with GVRP/GARP
Multicasting: Supports IP Multicast Filtering via IGMP Snooping V1, V2 & V3
Spanning Tree Protocol / Rapid Spanning Tree /Multiple Spanning Tree Protocol: IEEE 802.1d/1w/1s

• VLAN CAPABILITIES

Port-based VLAN
IEEE 802.1Q Tag-based VLAN; up to 4,096 active VLANs possible
MAC-based VLAN; Management VLAN; Private VLAN Edge (PVE); Voice VLAN
(Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate QoS levels.)

• QoS CAPABILITIES

Supports 802.1p QoS with eight level hardware priority queue.
Supports two scheduling types, Strict Priority and Weighted Round Robin
(WRR) with user-variable weighting.
Supports QoS Control Lists (QCL) for advance programmable QoS classification.
Supports bandwidth rating per port via port-policer
Ingress and Egress rate limits: 100 Kbps up to 1 Gbps for 1000Base ports

• POWER OVER ETHERNET (PoE) CAPABILITIES

24 IEEE 802.3af PoE/802.3at PoE+ Power Source Equipment (PSE) ports PoE supported as endpoint with 48 Volt DC power through RJ-45 pins 1, 2, 3, and 6; PoE-PSE activity LED indicator.
065-7861POE: 185 watts of total PoE power (up to 30 watts delivered to each of 6 ports, up to 15.4 watts delivered to each of 12 ports, or up to 7.7 watts delivered to each of 24 ports); 185 watts dedicated to PoE+ power provisioning.
065-7861POE-FP: 370 watts of total PoE power (up to 30 watts delivered to each of 12 ports, up to 15.4 watts delivered to each of 24 ports); 500 watts total power available for PoE and switch operation.
Auto-detects powered devices and consumption levels. Supports per port power consumption monitoring.
Supports intelligent PoE features:
Power Device (PD) on/off
PD detection & status
Power Level & Feeding priority
Per Port PoE state setting & power priority setting
Circuit protection, to prevent power interference between ports

• MANAGEMENT

Access Methods: Console port access via RS-232C/RJ-45 local console serial port (cable included with switch), SSH/SSL, Telnet, SNMP, or HTTP.
Software Upgrade Capability: Via HTTP, TFTP in-band, Console out-of-band
SIM (Single IP Management): Up to 16 switches can be managed via a single IP address. Virtual stacking via switch uplink channels; no extra proprietary stacking hardware required. Distributed stacking; no physical central wiring closet is needed.
SNMP v1, v2c, and v3 Network Management:
RFC 1213 MIB (MIB-II)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
VLAN MIB (IEEE802.1Q/RFC2674)
Private MIB

• ELECTRICAL CHARACTERISTICS

AC Input Range: 100 – 240 V AC, 50/60 Hz internal universal power supply
Maximum Wattage: 20 Watts, plus PoE+ load (370 Watts PoE+ load, maximum)

• ENVIRONMENTAL  REQUIREMENTS

Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Operating Humidity: 10 to 90% (non-condensing)

• PHYSICAL CHARACTERISTICS

065-7861POE:
Dimensions: 17.4” W x 11.81” D x 1.73” H (442 mm x 300 mm x 44 mm)
19 in rack mounting hardware included.
Weight: 8.5 lb (3.9 kg)
065-7861POE-FP:
Dimensions: 17.4” W x 15.15” D x 1.73” H (442 mm x 384.8 mm x 44 mm)
19 in rack mounting hardware included.
Weight: 11.22 lb (5.1 kg)

• CERTIFICATIONS

CE
Safety: UL 60950
EMI: FCC; EN 55022 (CISPR 22 Class A); EN 61000-3;
EMS: EN 61000-4-2/3/4/5/6/8/11; EN 55024

• WARRANTY

Five Years (Including power supply)
