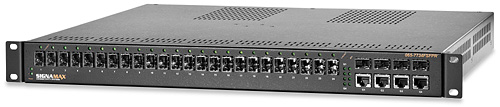

Signamax # 065-7734FSFPR 24-Port 100Base SFP Managed Switch plus 4-10/100/1000BaseT/TX Dual Media Ports and Redundant Power Supplies

Description

Signamax # 065-7734FSFPR 24-Port 100Base SFP Managed Switch plus 4-10/100/1000BaseT/TX Dual Media Ports and Redundant Power Supplies

The Signamax 24-port Managed Layer 2+ Ethernet Switch provides non-blocking performance for 24 100Base SFP ports, plus 4 Gigabit Ethernet connections. This option is a flexible and highly reliable edge extension switch capable of twisted-pair expansion for large networks that incorporates modern QoS and Tagged VLAN capabilities, along with, the full SNMP management at a surprisingly low cost. The four Dual Media Gigabit Ethernet ports are capable of using auto-detected SFP modules for fiber optic switch interconnection at extended distances.

Both ring and star Gigabit backbone network architectures are possible with full automatic failover. Communication with network management systems such as HP OpenView™ via SNMP for enterprise-wide status display, statistical monitoring, and switch control are also included. Enhanced Layer 3 look-ahead routing features and IP Type of Service support make the 24-port Managed Layer 2+ switch an excellent foundation for establishing or adding to an Enterprise network where redundant power is a requirement.

• Supports Recover-Ring™ and RSTP/MSTP/STP for Ethernet redundancy
• IP multicast filtering through IGMP snooping V1, V2 & V3
• Supports port-based VLAN and IEEE 802.1Q VLAN Tagging and GVRP
• IEEE 802.1p QoS with four priority queues
• MAC-based trunking with automatic link fail-over
• RS-232 console, Telnet, SNMP v1, v2c & v3, RMON, web browser, and TFTP Management
• Supports command line interface in RS-232 console
• Complies with EN50121-4 Railway Application Environment
• IEEE 802.1x Port-Based Network Access Control standard supported
• Bandwidth Rate Control
• Per-port programmable MAC address locking
• Up to 24 static secure MAC addresses supported
• Port Mirroring
• Supports Network Time Protocol (NTP)
• Supports 8192 MAC addresses with 3 Mbits memory buffer
• SFP ports for fast Ethernet or Gigabit Ethernet fiber optic expansion
• 100 to 240 V AC, 50/60 Hz redundant internal universal power supplies for reliability and flexibility

• APPLICABLE STANDARDS

IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3u 100BaseFX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX (via SFP module)
IEEE 802.1p Priority (Quality of Service [QoS])
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol compatible
IEEE 802.1Q Tagged VLAN with GVRP
IEEE 802.3x Flow Control
IEEE 802.1x Access Control

• PORTS

24 – 100Base SFP ports, plus
4 – 10/100/1000BaseT/TX Auto-Negotiation, Auto-MDI/MDIX Dual Media ports with 1000Base SFP ports
Multicast/Broadcast/Unknown-Unicast Storm suppression enabled.

• LED STATUS INDICATORS

Per Switch: Power Status 1 & 2
Per Port: 100Base SFP, 10/100/1000T/TX, Gigabit Ethernet SFP: Link/Activity Gigabit Ethernet SFP: SFP emplaced

• PERFORMANCE

Latency: <4.5 μs (LIFO).
Throughput, per port: 1.48810 million pps (64-byte packets)
Switch Fabric Speed: 12.8 Gbps (non-blocking, wire speed performance)
MAC Address Capacity: 8K; Per-port programmable MAC address locking up to 24 Static Secure MAC addresses per port
Frame Buffer: 3 Mbits
Port Mirroring: Inbound and Outbound, assignable to any port

• INTERNETWORKING PROTOCOLS SUPPORTED

Recover-Ring™: Supports recovery of ring-based network architecture in Proprietary.
MAC-based Trunking: 2 Fast Ethernet +1 Gigabit Ethernet trunking groups; up to 4 ports for each group
GARP VLAN Registration Protocol / Generic Attribute Registration Protocol: IEEE 802.1Q with GVRP/ GARP
Multicasting: IP Multicast Filtering via IGMP Snooping V1, V2 & V3
Spanning Tree Protocol/Rapid Spanning Tree/Multiple Spanning Tree Protocol: IEEE 802.1d/1w/1s

• VLAN CAPABILITIES

Port-based VLAN
IEEE 802.1Q Tag-based VLAN; up to 4096 active VLANs possible

• QoS CAPABILITIES

Supports 802.1p QoS with four level priority queue
Supports two scheduling types, Strict Priority and Weighted Round Robin (WRR) with user-variable weighting.
Supports bandwidth rating per port
Ingress and Egress rate limits: 1 Kbps up to 100 Mbps for 10/100 ports, up to 1 Gbps for 1000Base ports

• MANAGEMENT

Access Methods: Console port access via RS-232C DB-9 local console serial port, Telnet remote access, SNMP agent, and Web browser.
Software Upgrade Capability: Via TFTP
SNMP v1, v2c, and v3 Network Management
RFC 1213 MIB (MIB-2)
RFC 1757 RMON MIB
Statistics Group 1
History Group 2
Alarm Group 3
Event Group 9
RFC 1493 Bridge MIB
VLAN MIB (IEEE802.1Q/RFC2674)
Private MIB

• ELECTRICAL CHARACTERISTICS

AC Input Range: 100-240 V AC, 50/60 Hz redundant internal universal power supplies, load-sharing and hot-swappable
Maximum Wattage: 35.4 Watts maximum.

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 32°F to 113°F (0°C to 45°C);
Storage Temperature: -14°F to 185°F (-10°C to 45°C).
Operating Humidity: 5 to 95% (non-condensing)

• PHYSICAL CHARACTERISTICS

Dimensions: 17.4” W x 14.1” D x 1.74” H (442 mm x 360 mm x 44.2 mm)
19 in rack mounting hardware included.
Weight: 7.5 lb (3.4 kg)

• CERTIFICATIONS

CE, FCC, ROHS

• WARRANTY

Five Years (Including power supply)
