Signamax #065-1132 100FX Singlemode To Multimode Media Converters 100BaseFX SC/SM, 15 km Span to 100BaseFX SC/MM, 2 km Span

Description

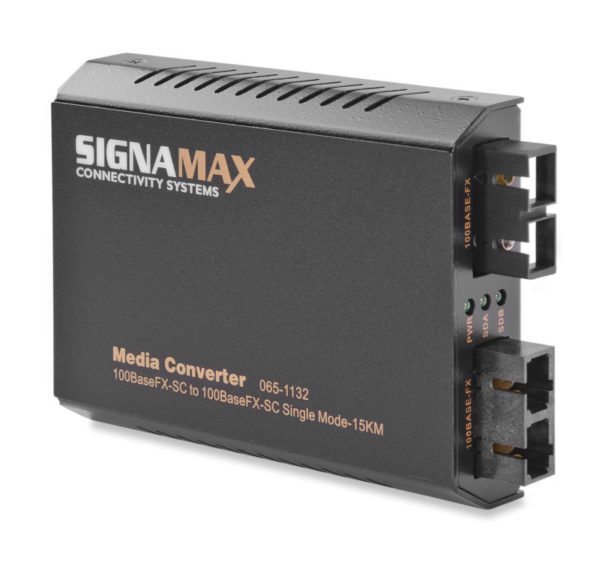

Signamax #065-1132 100FX Singlemode To Multimode Media Converters 100BaseFX SC/SM, 15 km Span to 100BaseFX SC/MM, 2 km Span

The Signamax 100FX Singlemode to Multimode Media Converters provide efficient solutions for interconnecting multimode fiber LANs over longer distances by integrating singlemode fiber optic cable into the LAN. By providing a multimode interface to singlemode fiber carrier demarcation points, these media converters enable Ethernet LAN and WAN connectivity.

Each Media Converter is enclosed in a compact, strong metal case and includes an external power supply for stand-alone applications. They can also be installed without modification into the Signamax Rack Mount Chassis system, featuring redundant power supplies for high reliability in multiple converter installations.

• Flexibility extends transmission distance via multimode to singlemode fiber conversion
• Sturdy Metal Enclosure
• LEDs monitor network status
• Supports wall mounting, DIN-rail mounting or use with media converter rack mount chassis
• Limited Lifetime Warranty

• APPLICABLE STANDARDS

IEEE 802.3u 100BaseFX

• FIXED PORTS

1 – SM Fiber optic 100BaseFX port, plus
1 – MM Fiber optic 100BaseFX port with varying connectors per P/N

• LED STATUS INDICATORS

Per Unit: Power
Per Fiber Port: Port A Link (SDA); Port B Link (SDB)

• PERFORMANCE

Latency: < 21 bit times
Throughput, per port: @ 100Base: 148,809 pps (64-byte packets)
Speed: 100BaseFX: 100/200 Mbps for half/full duplex

• FIBER INTERFACE

Multimode Ports
Type: LED
Wavelength: 1300 nm nominal (1270 nm max.,1380 nm min.)
Max Output Power: -14.0 dBm
Min Output Power: -20.0 dBm
Sensitivity: -33.0 dBm
Max Input Power: -8.0 dBm
Link Power Budget: 13.0 dB

Singlemode Ports
Type: MQW Laser
Wavelength:1300 nm nominal (1270 nm max.,1360 nm min.)
Max Output Power:
065-1132: -7.0 dBm
Min Output Power:
065-1132: -15.0 dBm
Sensitivity:
065-1132: -34.0 dBm
Max Input Power:
065-1132: -7.0 dBm
Link Power Budget:
065-1132: 19.0 dB

• ELECTRICAL CHARACTERISTICS

12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.

• ENVIRONMENTAL REQUIREMENTS

Operating Temperature: 32°F to 122°F (0°C to 50°C);
Storage Temperature: -13°F to 158°F (-25°C to 70°C)
Relative Humidity: 10% to 95% (non-condensing)

• PHYSICAL CHARACTERISTICS

Dimensions: 4.33” L x 3.19” W x 0.91” H (109.2 mm x 83 mm x 23.8 mm)
Weight: 0.33 lb (150 g)

• CERTIFICATIONS

CE, FCC, ROHS, VCCI Class A

• WARRANTY

Limited Lifetime
