Signamax 065-1100NS 100BaseTX to 100BaseFX Media Converter ST/MM, 2 km Span

Description

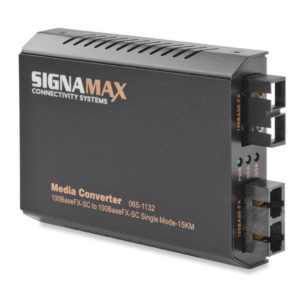

Signamax 065-1100NS 100BaseTX to 100BaseFX Media Converter ST/MM, 2 km Span

The Signamax 100TX to 100FX Non-Switching Media Converters are available for direct connection to 100BaseTX RJ-45 and 100BaseFX fiber optic Fast Ethernet devices in a choice of connector and fiber optic cable types. The options available are enclosed in a compact, strong metal case with an external power supply for stand-alone applications.

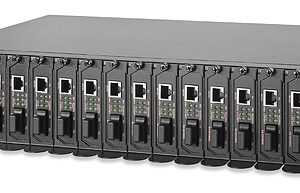

They can be installed without modification into the Signamax Rack Mount Chassis system which features redundant power supplies for high reliability in multiple converter installations. These media converters reduce cabling cost by providing flexible, non-switching fiber optic solutions for Ethernet LANs and WAN connectivity.

• DIP switch configuration for link fault signalling, fiber auto/force mode, and SFP speed
• ST or SC connectors availble
• Supports wall mounting, DIN-rail mounting or use with a media converter rack mount chassis
• LEDs for functions, links, and activity
• Limited Lifetime Warranty

• APPLICABLE STANDARDS

IEEE 802.3u 100BaseTX
IEEE 802.3u 100BaseFX

• PORTS

1 – RJ-45 100BaseTX Auto-MDI/MDIX port plus
1 – fiber optic 100BaseFX port with varying connectors and span per P/N

• LED INDICATORS

Per Unit: Power
Per RJ-45 Port: Link/Activity, Full Duplex/Collision (FDX/COL);
RJ-45 port speed
Per Fiber Port: Link/Activity, Full Duplex/Collision (FDX/COL)

• PERFORMANCE

Latency: < 21 Bit Times)
Throughput @ 100Base: 148,809 pps (64-byte packets)
Speed: 100BaseTX: 100/200 Mbps for half/full duplex; 10BaseT: 10/20 Mbps for half/full duplex
MAC Address Capacity: 1K; Memory: 256 KB

• FIBER INTERFACE

Type:
P/Ns 065-1100NS/1110NS: LED
P/Ns 065-1120NS: MQW Laser
Wavelength:
P/Ns 065-1100NS/1110NS: 1300 nm nominal (1270 nm max.,1380 nm min.)
P/Ns 065-1120NS: 1300 nm nominal (1260 nm max.,1360 nm min.)
Max Output Power:
P/Ns 065-1100NS/1110NS: -14.0 dBm
P/Ns 065-1120NS: -7.0 dBm
Min Output Power:
P/Ns 065-1100NS/1110NS: -20.0 dBm
P/Ns 065-1120NS: -15.0 dBm
Sensitivity:
P/Ns 065-1100NS/1110NS: -33.0 dBm
P/Ns 065-1120NS: -34.0 dBm
Max Input Power:
P/Ns 065-1100NS/1110NS: -8.0 dBm
P/Ns 065-1120NS: -7.0 dBm
Link Power Budget:
P/Ns 065-1100NS/1110NS: 13.0 dB
P/Ns 065-1120NS: 19.0 dB

• ELECTRICAL CHARACTERISTICS

12 V DC. External 100 – 240 V AC 50/60 Hz. Power supply included.

• ENVIRONMENTAL CHARACTERISTICS

Operating Temperature: 32°F to 122°F (0°C to 50°C);
Storage Temperature: -4°F to 176°F (-20°C to 80°C)
Relative Humidity: 10% to 80% (non-condensing)

• PHYSICAL CHARACTERISTICS

Dimensions: 4.33” L x 3.16” W x 0.91” H (109.2 mm x 83 mm x 23.8 mm)
Weight: 0.35 lb (160 g)

• CERTIFICATIONS

CE, FCC, ROHS, VCCI Class A

• WARRANTY

Limited Lifetime
